1 x 45 kW – HPU
Our Hydraulic Power Units (HPUs) are engineered for superior performance and reliability. Each unit is delivered with oil and certified lifting gear for lifting, ensuring easy and safe transportation and installation.

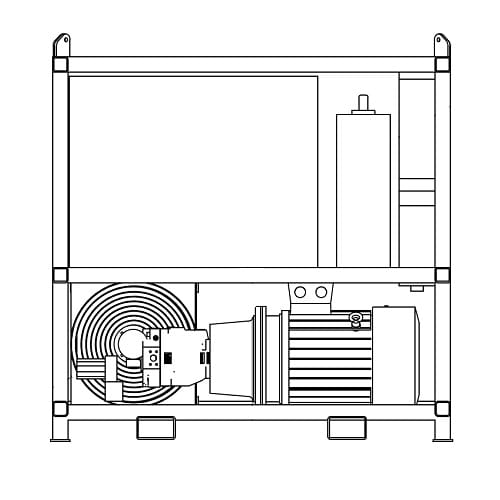

Compact frame hpu unit with sound traps installed. Variable single pump with pressure compensated (PC) or Load Sense (LS) mode. For use in hazardous area zone 1. Fitted with drip-free 71-series connection on our standardized hose package.
Delivered in a compact frame for use in challenging locations offshore.
Features
• Design: Compact cage-design for use in challenging locations offshore. Unit are delivered with demountable sound dampening-panel mounted in frame (standard). This ensures easy access for maintenance, promoting a quieter and more user-friendly operational environment.
• Hydraulic: Hydraulic systems designed for use under demanding conditions.
• Lifting: Delivered with lifting system.
Technical specifications
• Hydraulic systems: Single pump with variable flow and configurate for load sense mode.
• Connection: Quick mount and drip secure hydraulic connectors mounted in front of unit.
• Electrical systems: Electrical configurations for use in hazardous area zone 1 (offshore).
• Safety system: Built with safety systems for secure use.
• Area class: For use in hazardous area zone 1 (offshore)
Certification
• Lifting Gear: Certified lifting gear included for secure lifting.
• Documentation: NORSOK Z-015 package
Available models for rental
| Model | Max pressure | Flow up to | Installed power | Hazardous area | Hydraulic tank size | Net weight* |
|---|---|---|---|---|---|---|
| 3883 | 350 bar | 250 l/min | 45 kW | Zone 1 | 600 l | 2300 kg |
* Weight includes hydraulic oil
