LIFTSTAR 0,6 – 1,5 TON – AIR WINCH – Kolos Lifting & Inspection AS

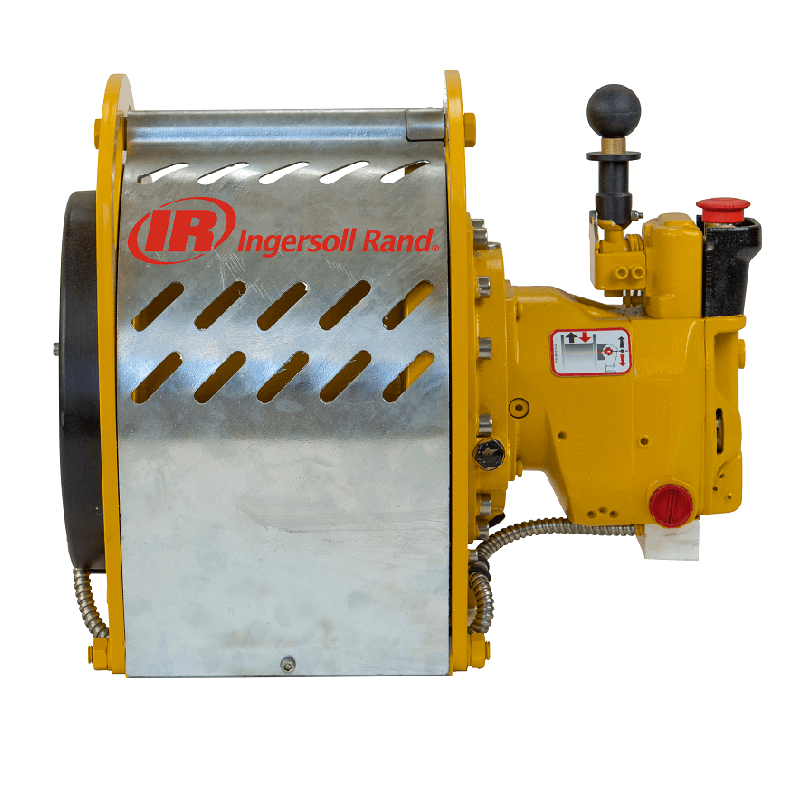

Liftstar air winch

Ingersoll Rand’s Liftstar and Pullstar air winches offer solid construction and are highly reliable. Compact design with effective air motors in a small winch unit. Liftstar winches are designed for lifting applications while Pullstar winches are design for pulling. With enclosed gear boxes for protection and cast iron and steel construction for durability.

For use in industrial application, oil & gas drill rigs, FPSO- and FLNG vessels.

Download datasheet

Rental request

– For use in industrial application, oil & gas drill rigs, FPSO- and FLNG vessels

– Meets all requirements for high duty-cycle, harsh environment operation and are strongly reliability.

– Compact design, light weight and powerfull.

– CE-certified models ensure highly safety. ATEX approved for use in zone 2.

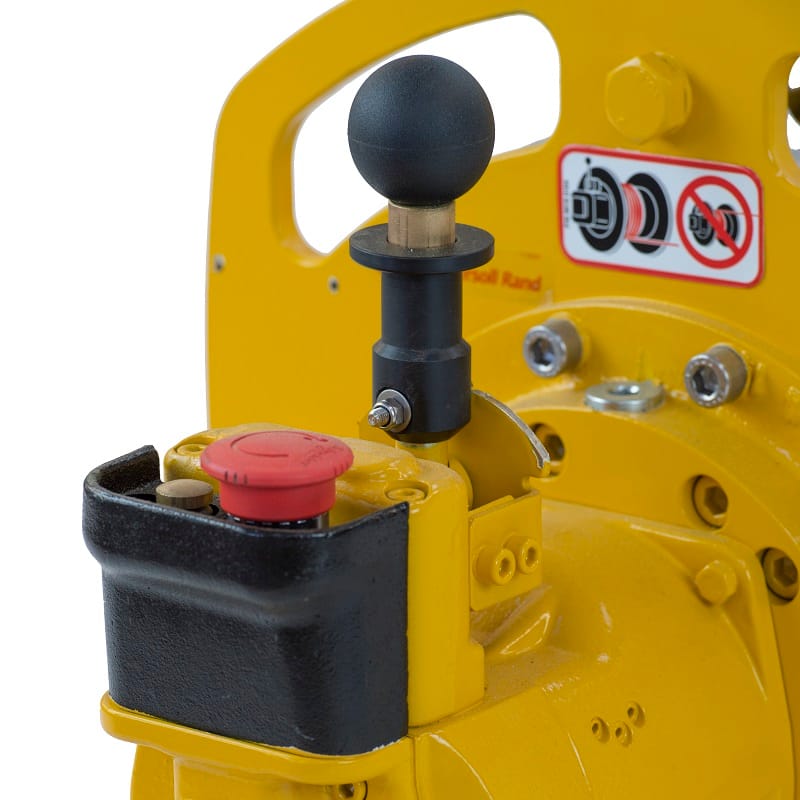

– Available with local throttle lever or pendant.

Available models for rental

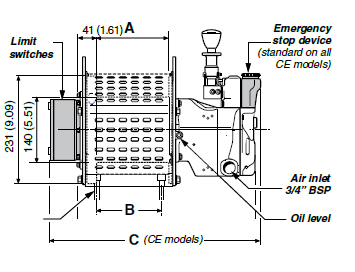

Model	Lifting capacity	Wire capacity	Wire storage	Net weight	Required air flow	Lifting speed*	Wire rope diameter*	Sound level*
LS2-600R	600 kg	58 m	89 m	42 kg	4 m3/min	20 m/min	6,5 mm	92 db(A)
LS2-1500RGC	1500 kg	70 m	128 m	100 kg	4,8 m3/min	9,5 m/min	11 mm	90 db(A)

* All data is based on working pressure 6,3 bar / 90 PSI and for local throttle setup. Lifting speed is at top layer.
* Drum capacity is based on tightly wound wire rope and 1/2″ freeboard from the top of the flange to the top layer. Recommended drum working capacity is 80% of values shown. GC = Long drum
* Sound level per EN 14492-1.
