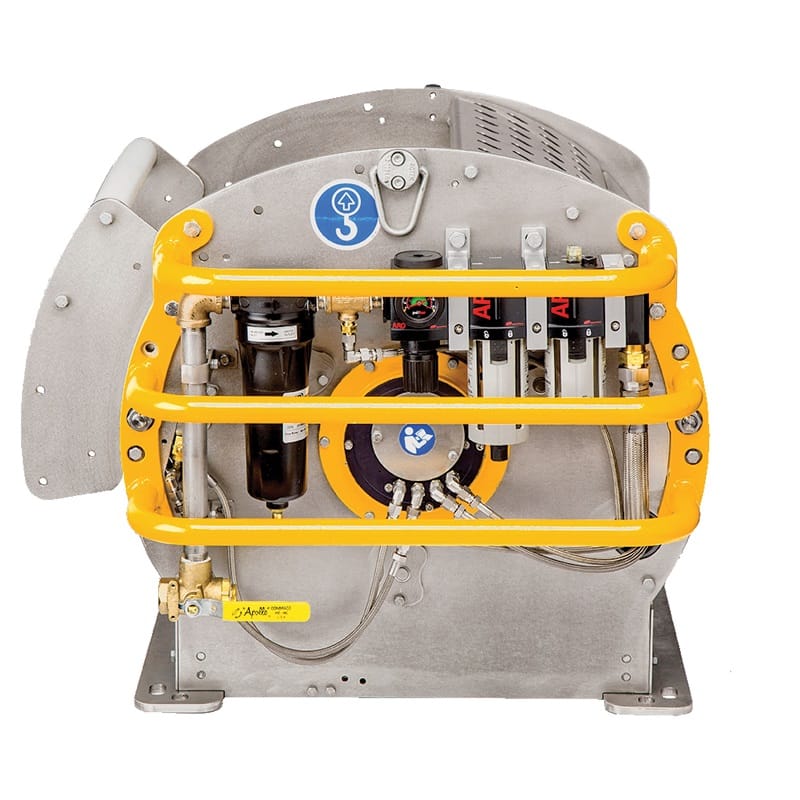

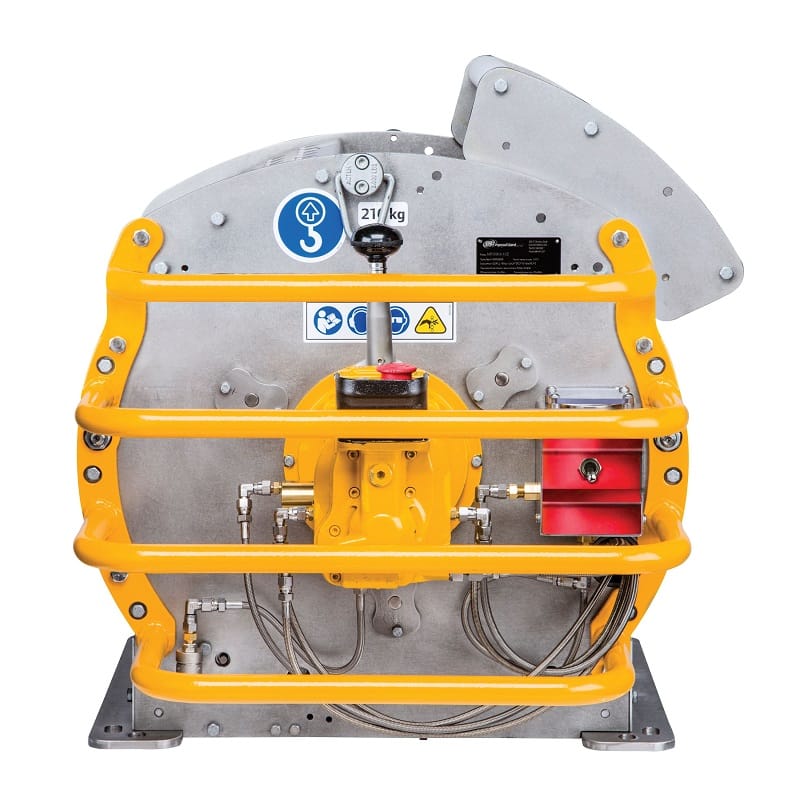

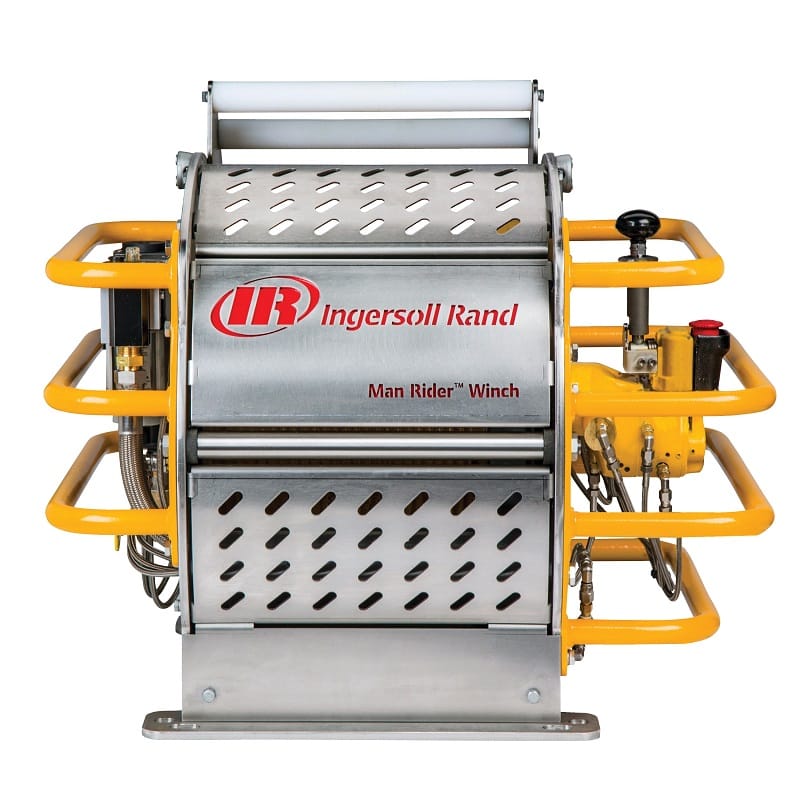

Man Rider air winch
Ingersoll-Rand is known for its quality lifting equipment products, and the Man Rider winch is no exception. The main focus are quality with well proved design to minimize the risks of lifting people.
Meets requirement and are delivered with features like slack line prevention, redundant braking system and also system for emergency lowering.
Need your Man Rider service according to manufacturer`s instrucion? Rent av replacement winch.
Durability
- Corrosion resistant design with painted surfaces and stainless steel parts.
- Available to adjust multiple wire takeoff angles.
- Available with spooling device and pressroll.
- Mechanical protection mounted to protect from external influences.
Safety
- Build with wire spooling device or press roller to ensure safe wire spooling.
- Emergency stop protects personnel.
- Equipped with upper- and lower limit switches and slack wire system.
- Overload protection to prevent personnal injury og equipment damages.
- Variable «Lift-to-shift» speed lever or remote-pendant control.
Performance
- Precision variable air motor.
- Redundant braking system, two independent brake system.
- Designed and build for long service cycles and lifetime.
Available models for rental
| Model | Lifting capacity | Wire capacity | Wire storage | Net weight | Required air flow | Lifting speed* | Wire rope diameter* | Sound level* |
|---|---|---|---|---|---|---|---|---|
| MR150K | 150 kg | 55 m | 180 m | 210 kg | 2,5 m3/min | 30 m/min | 10 mm | – |
* All data is based on working pressure 6,3 bar / 90 PSI and for local throttle setup. Lifting speed is at top layer.
Dimension – Download drawing
Specifications / Features
- Rated work load: 150 kg
- Two independent auto brakes (disc and band)
- Stainless steel throttle lever
- Slack wire detector
- 3-way ball valve for emergency air *
- Upper- and lower limit switch
- Spooling or press roller device
Note!

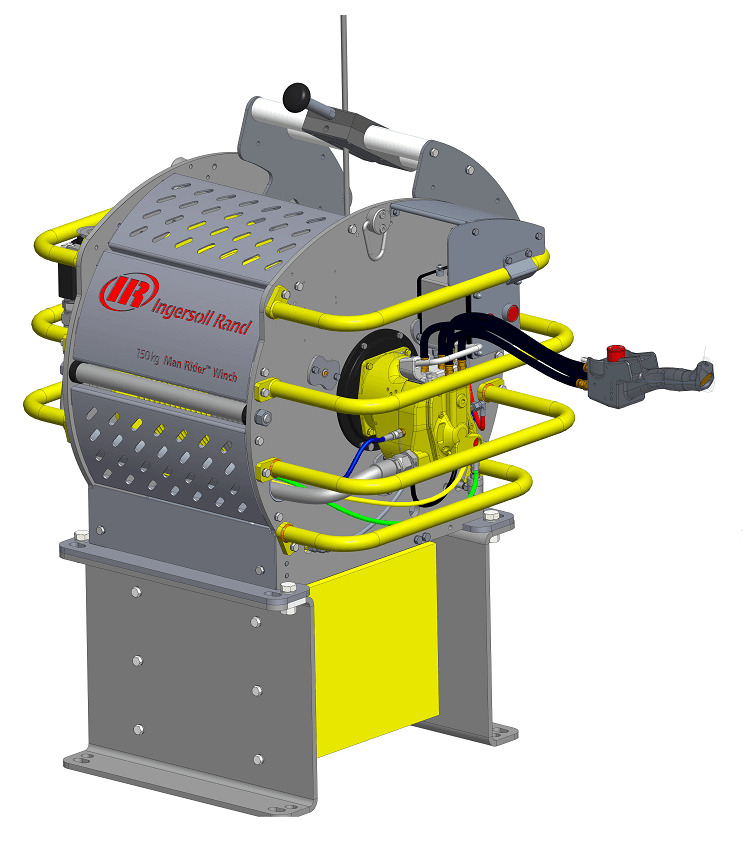

Pedestal shown on picture is an option and are not included.
* We only supply 3-way ball valve and no compressed air stored on banks.
