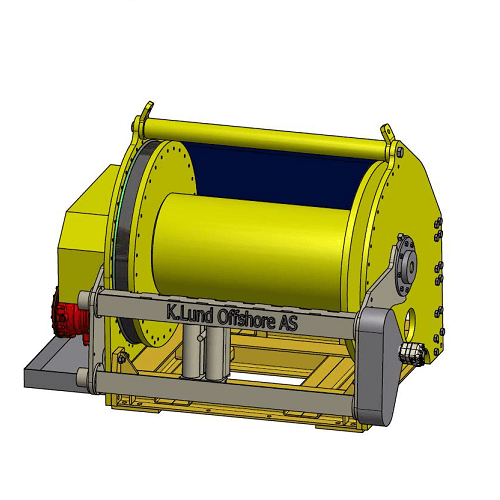

Hydraulic winch 28 ton
Compact 28 ton hydraulic winch for use in hazardous area zone 1. Fitted with drip-free 71-series connection on our standardized hose package – set up for our HPU-series.
Hagglunds hydraulic motors connected to drive gear with ratio 7,17:1 to ensure low hysteresis in constant tension mode. Can also be configurated to active heave compensated mode.
Delivered with spooling device.
– For use in industrial application, marine and oil & gas drill rigs.
– Meets all requirements for high duty-cycle, harsh environment operation and are strongly reliability.
– Compact design, light weight and powerfull.
– Can be switched between low and high speed option.
– CE-certified models ensure highly safety. ATEX approved for use in zone 1.
– Available with local throttle lever or remote hose control.
– Can be configurated to be used as active heave compensated.
Available models for rental
| Model | Lifting capacity* | Max pressure | Flow up to | Lifting speed* | Net weight* | Wire capacity | Wire rope diameter* |
|---|---|---|---|---|---|---|---|
| HV28-1500-7 | 28 t | 350 bar | 650 l/min | 70 m/min | 7000 kg | 670 m | 40 mm |
| HV28-1500-7 | 28 t | 350 bar | 450 l/min | – | 7000 kg | 670 m | 40 mm |
* Lifting capacity is at mid drum // Lifting speed is at top layer, and in reduced volume on motor (lower lifting capacity) // Weight includes spooling device, but weight of wire rope is not included // Wire rope can be changed.
