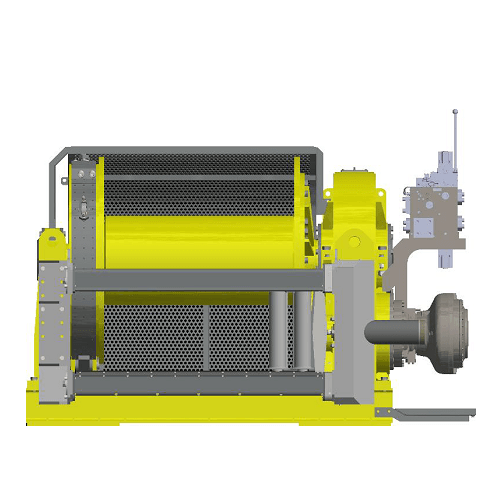

Hydraulic winch 60 ton
Compact 60 ton hydraulic winch for use in hazardous area zone 1. Fitted with drip-free 71-series connection on our standardized hose package – set up for our HPU-series.
Hagglunds hydraulic motors connected to drive gear with low ratio to ensure low hysteresis in constant tension mode. Can also be configurated to active heave compensated mode.
Delivered with spooling device. Available with electronic overload.
– For use in industrial application, marine and oil & gas drill rigs.
– Meets all requirements for high duty-cycle, harsh environment operation and are strongly reliability.
– Compact design, light weight and powerfull.
– CE-certified models ensure highly safety. ATEX approved for use in zone 1.
– Available with local throttle lever or remote hose control.
– Can be configurated to be used as active heave compensated.
– Designed for use with electronic overload system from Running Line Monitor.
Available models for rental
| Model | Lifting capacity* | Max pressure | Flow up to | Lifting speed* | Net weight* | Wire capacity | Wire rope diameter* |
|---|---|---|---|---|---|---|---|
| HV60 | 60 t | 350 bar | 1000 l/min | 200 m/min | 12 600 kg | 574 m | 54 mm |
* Lifting capacity is at mid drum // Lifting speed is at full drum, and in reduced volume on motor (lower lifting capacity) // Weight includes spooling device, but weight of wire rope is not included // Wire rope can be changed.
